Project Description

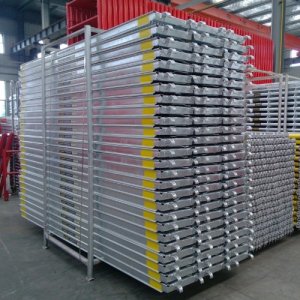

320mm Layer scaffold Plank
Get Price

Steel Plank

Steel plank is always requested more in system scaffolding, especially in access and scaffolding work. Width and length are the main data.

The low profile steel plank’s top surface is almost level with the top surface of the ledger of scaffolding, but the non-low profile is above the level about 3 or 4cm.

Besides, there is different on the thickness of steel plate which is the materials for steel plank, from 1.2mm to 2mm.

The more thick, the more stable and steady you feel when you step on them, but it means that the plank is more weighty. Relatively, the aluminum plank will be more light, but more expensive.

  • Material: Q195-Q235;

  • Surface treatment: Hot-dip galvanized or Pre-galvanized;

  • Type: W/ hooks or W/O hooks;

  • Size can be customized.

Steel Plank 228 width

Steel Plank 228 width

Width: 9″, 228.6mm; W/ Hooks

Product Length
Code Description Inches Meters
SPW228L730 2′-4″ 28.82 0.73
SPW228L1090 3′-6″ 42.83 1.09
SPW228L1290 4′-3″ 50.63 1.29
SPW228L1570 5′-2″ 61.88 1.57
SPW228L2070 6′-9″ 81.5 2.07
SPW228L2570 8′-6″ 101.3 2.57
SPW228L3070 10′-1″ 121 3.07
steel plank 241 width

Steel Plank 241 width

Width: 9-1/2″, 241.3mm; W/ Hooks

Product Length
Code Description Inches Meters
SPW241L730 2′-4″ 28.82 0.73
SPW241L1090 3′-6″ 42.83 1.09
SPW241L1290 4′-3″ 50.63 1.29
SPW241L1570 5′-2″ 61.88 1.57
SPW241L2070 6′-9″ 81.5 2.07
SPW241L2570 8′-6″ 101.3 2.57
SPW241L3070 10′-1″ 121 3.07
steel plank 320 width

Steel Plank 320 width

Width: 12-1/2″, 320mm; W/ Hooks

Product Length
Code Description Inches Meters
SPW320L730 2′-4″ 28.82 0.73
SPW320L1090 3′-6″ 42.83 1.09
SPW320L1290 4′-3″ 50.63 1.29
SPW320L1570 5′-2″ 61.88 1.57
SPW320L2070 6′-9″ 81.5 2.07
SPW320L2570 8′-6″ 101.3 2.57
SPW320L3070 10′-1″ 121 3.07
Steel Deck 210mm width

Steel Deck 210mm width

Width: 210mm; Height: 45mm;

Code Length
SPW210L500 500mm
SPW210L1000 1000mm
SPW210L1500 1500mm
SPW210L2000 2000mm
SPW210L2500 2500mm
SPW210L3000 3000mm
SPW210L3500 3500mm
Steel Walking Board 240mm width

Steel Walking Board 240mm width

Width: 240mm; Height: 45mm;

Code Length
SPW240L500 500mm
SPW240L1000 1000mm
SPW240L1500 1500mm
SPW240L2000 2000mm
SPW240L2500 2500mm
SPW240L3000 3000mm
SPW240L3500 3500mm
Steel Plank 500mm width with Hooks

Steel Plank 500mm width with Hooks

Width: 500mm; Height: 50mm;

Code Length
SPW500L500 500mm
SPW500L1000 1000mm
SPW500L1500 1500mm
SPW500L2000 2000mm
SPW500L2500 2500mm
SPW500L3000 3000mm
SPW500L3500 3500mm
Infill Plank

Infill Plank

  • Width:150mm;
  • Application: close dangerous gap;
Code Length
SPIW150L730 730mm
SPIW150L1090 1090mm
SPIW150L1570 1570mm
SPIW150L2070 2070mm
SPIW150L2570 2570mm
SPIW150L3070 3070mm
 The detail images for steel plank. Welding process and surface treatment.
