Project Description

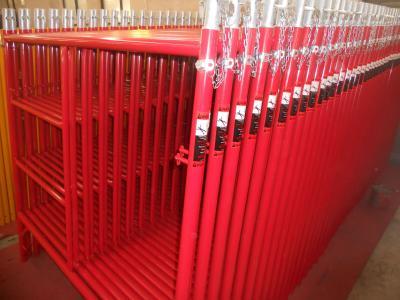

american frame with fast lock
Get Price

Frame scaffolding

Total Contec’s frame scaffolding belongs to system scaffolding. The frame and cross brace are the main components, so it is named after its shape.

This kind of modular scaffolding may be the most commonly used in construction industry.

In building construction, decoration, and maintenance projects, we can find that the frame scaffolding with plank, transom, and guardrail is a significant choice among steel facade scaffolding systems.

There are three kinds of frame scaffolding in our experience along with our customers, such as American Frame, Euro Frame, and Japanese Frame. There are other specific names of frame scaffolding in this industry, like baker scaffolding that is actually narrow frame scaffolding, if you add caster on it, you can move it easily, known as portable scaffolding or rolling scaffolding in some areas.

Following, we list some common data of frame scaffolding. The frame is made in a wide variety of sizes and configurations, and we can meet customer’s requirements in width, height, OD, thickness, etc. Meanwhile, we also supply the steel and aluminum plank, casters to satisfy customer’s applications.

American Frame Scaffolding

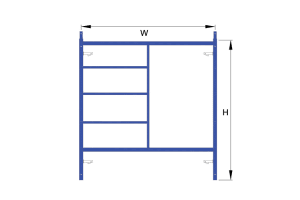

Step frame

Step Frame

Step Frame, also called Mason Frame

Leg Tube: OD41.2mm, Surface treatment: Powder Coated

Product Width Height
Code Description Inches Meters Inches Meters
AFSF01 5’*3′ Step Frame 60 1.524 36 0.914
AFSF02 5’*4′ Step Frame 60 1.524 48 1.219
AFSF03 5’*5′ Step Frame 60 1.524 60 1.524
AFSF04 5’*6’4″ Step Frame 60 1.524 76 1.93

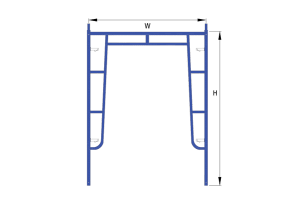

walk through frame

Walk Through Frame

Leg Tube: OD41.2mm, Surface treatment: Powder Coated

Product Width Height
Code Description Inches Meters Inches Meters
AFWTF01 4’*5’7″ Walk Through Frame 48 1.219 67 1.702
AFWTF02 4’*6’4″ Walk Through Frame 48 1.219 76 1.93
AFWTF03 5’*4′ Walk Through Frame 60 1.524 48 1219
AFWTF04 5’*6’4″ Walk Through Frame 60 1.524 76 1.93
AFWTF05 5’*6’7″ Walk Through Frame 60 1.524 79 2.007

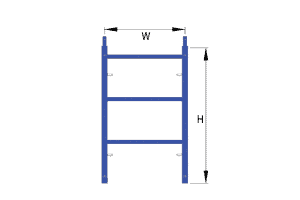

ladder frame

Ladder Frame

Leg Tube: OD41.2mm, Surface treatment: Powder Coated

Product Width Height
Code Description Inches Meters Inches Meters
AFLF01 2’*5′ Ladder Frame 24 0.61 60 1.524
AFLF02 2’*6’4″ Ladder Frame 24 0.61 76 1.93
AFLF03 3’*4′ Ladder Frame 36 0.914 48 1219
AFLF04 3’*5′ Ladder Frame 36 0.914 60 1.524
AFLF05 3’*6′ Ladder Frame 36 0.914 72 1.829

Japanese Frame Scaffolding

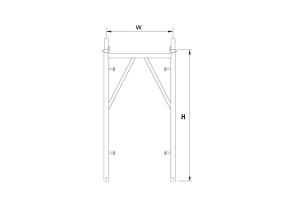

Japanese frame 1

Japanese Frame – 01

Surface treatment: Hot-dip Galvanized

Code Width Height
JF01 410mm 1700mm
JF02 610mm 1700mm

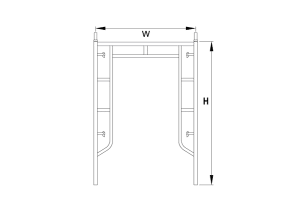

Japanese frame 2

Japanese Frame – 02

Surface treatment: Hot-dip Galvanized

Code Width Height
JF03 1219mm 1524mm
JF04 1219mm 1700mm
JF05 1219mm 1930mm

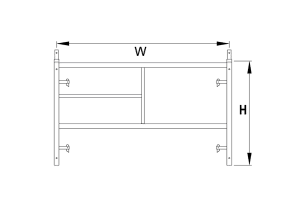

Japanese frame 3

Japanese Frame – 03

Surface treatment: Hot-dip Galvanized

Code Width Height
JF06 1219mm 914mm
JF07 1219mm 1219mm

Euro Frame Scaffolding

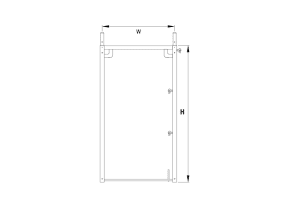

Euro assembly frame

Euro Assembly Frame

Surface treatment: Hot-dip Galvanized

Product Width Length
Code Description Inches Meters Inches Meters
EAF01 2’5″*3’3″ Step Frame 29 0.73 39 1
EAF02 2’5″*6’7″ Step Frame 29 0.73 79 2
 The details of frame scaffolding. Welding process and surface treatment.
