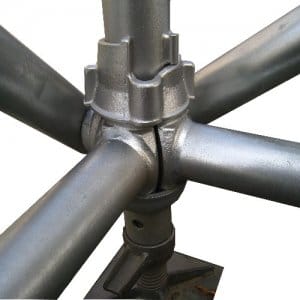

Cuplock

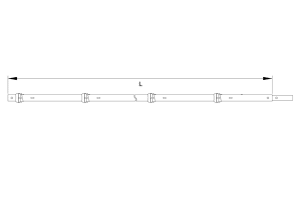

Cuplock Standard
Tube diameter: 48.3mm, thickness: 3.2mm, Steel Grade: Q345, Surface treatment: Hot dip galvanized
| Product | Length | ||
| Code | Description | Inches | Meters |
| CLS500 | 1 Cup standard w/spigot 1′-8″ | 19.69 | 0.5 |
| CLS1000 | 2 Cup standard w/spigot 3′-3″ | 39.37 | 1.0 |
| CLS1500 | 3 Cup standard w/spigot 4′-11″ | 59.06 | 1.5 |
| CLS2000 | 4 Cup standard w/spigot 6′-6″ | 78.74 | 2.0 |
| CLS2500 | 5 Cup standard w/spigot 8′-2″ | 98.43 | 2.5 |
| CLS3000 | 6 Cup standard w/spigot 9′-10″ | 118.11 | 3.0 |
Cuplock Ledger
Tube diameter: 48.3mm, thickness: 3.2mm, Steel Grade: Q345, Surface treatment: Hot dip galvanized
| Product | Length | ||
| Code | Description | Inches | Meters |
| CLL787 | 2′-7″ Ledger | 31 | 0.787 |
| CLL914 | 3′ Ledger | 36 | 0.914 |
| CLL1066 | 3′-6″ Ledger | 42 | 1.066 |
| CLL1219 | 4′ Ledger | 48 | 1.219 |
| CLL1524 | 5′ Ledger | 60 | 1.524 |
| CLL1828 | 6′ Ledger | 72 | 1.828 |
| CLL2133 | 7′ Ledger | 84 | 2.133 |
| CLL2438 | 8′ Ledger | 96 | 2.438 |
| CLL2743 | 9′ Ledger | 108 | 2.743 |
| CLL3048 | 10′ Ledger | 120 | 3.048 |
Cuplock Diagonal Brace
Tube diameter: 48.3mm, thickness: 2.5mm, Steel Grade: Q235, Surface treatment: Hot dip galvanized
| Product | Width | Length | |||
| code | description | Inches | Meters | Inches | Meters |
| CLDB2342 | 4′ Diagonal Brace | 48 | 1.219 | 78.74 | 2 |
| CLDB2514 | 5′ Diagonal Brace | 60 | 1.524 | 78.74 | 2 |
| CLDB2693 | 5′-11″ Diagonal Brace | 71 | 1.803 | 78.74 | 2 |
| CLDB2924 | 7′ Diagonal Brace | 84 | 2.133 | 78.74 | 2 |
| CLDB3153 | 8′ Diagonal Brace | 96 | 2.438 | 78.74 | 2 |
| CLDB3193 | 8′-2″ Diagonal Brace | 98 | 2.489 | 78.74 | 2 |
| CLDB3394 | 9′ Diagonal Brace | 108 | 2.743 | 78.74 | 2 |
| CLDB3645 | 10′ Diagonal Brace | 120 | 3.048 | 78.74 | 2 |
Cuplock Truss
Tube diameter: 48.3mm, thickness: 3.2mm, Steel Grade: Q235, Surface treatment: Hot dip galvanized
| Product | Length | ||
| Code | Description | Inches | Meters |
| CLT2133 | 7′ Truss | 84 | 2.133 |
| CLT2438 | 8′ Truss | 96 | 2.438 |
| CLT2743 | 9′ Truss | 108 | 2.743 |
| CLT3048 | 10′ Truss | 120 | 3.048 |
| CLT3658 | 12′ Truss | 144 | 3.658 |
| CLT4267 | 14′ Truss | 168 | 4.267 |
| CLT4877 | 16′ Truss | 192 | 4.877 |
| CLT5486 | 18′ Truss | 216 | 5.486 |
| CLT6096 | 20′ Truss | 240 | 6.096 |
| CLT6401 | 21′ Truss | 252 | 6.401 |
Cuplock Board Bracket
Tube diameter: 48.3mm, thickness: 3.2mm, Steel Grade: Q235, Surface treatment: Hot dip galvanized
| Product | Length | ||
| Code | Description | Inches | Meters |
| CLBB360 | One Board | 11.4 | 0.29 |
| CLBB390 | Two Board | 22.2 | 0.57 |
| CLBB730 | Three Board | 31.3 | 0.8 |
Cuplock Transom Beam
| Product | Length | ||
| Code | Description | Inches | Meters |
| CLTB914 | 3′ Transom Beam | 36 | 0.914 |
| CLTB1219 | 4′ Transom Beam | 48 | 1.219 |
