Project Description

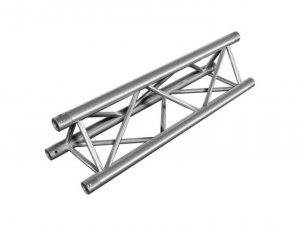

Triangle Spigot Truss
Dimension units = millimeter (mm), Length (L), Width (W), Outer Diameter (OD), Thickness (T)
Truss length: 1m, 2m, 3m, 4m customized;
Material: Aluminum Alloy 6061-T6 or 6082-T6;
| Code | Truss Width L*W | Main Tube (OD*T) | Beam Tube (OD*T) | Diagonal Tube (OD*T) |
| Truss 220*220 | 220*220 | 30*2 | / | 20*2 |
| Truss 250*250 | 250*250 | 50*2 | 20*2 | 20*2 |
| Truss 290*290 | 290*290 | |||
| Truss 350*350 | 350*350 | 50*3 | 25*2 | 25*2 |
| Truss 390*390 | 390*390 | |||
| Truss 470*470 | 470*470 | 50*3 | 50*2 | 25*2 |
| Truss 520*520 | 520*520 | |||
| Truss 400*500 | 400*500 | |||
| Truss 400*600 | 400*600 | |||
| Truss 500*600 | 500*600 | |||
| Truss 520*760 | 520*760 | |||
| Truss 600*760 | 600*760 |
